Kaersutite: Low Energy EDS

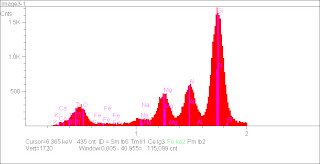

This is EDS taken from a sample of graphite coated Kaersutite which has the formula NaCa2(Mg4Ti)Si6Al2O23(OH)2 as an example of the low energy performance of the EDS detector with its new Moxtek AP 3.3 window. Unresolved O Kα and Ti Lα are clearly seen, as are Na, Mg, Al and Si Kα. Some of the Fe L lines can be seen between Ti Lα-O Kα and Na Kα.
