EDS Detector Window

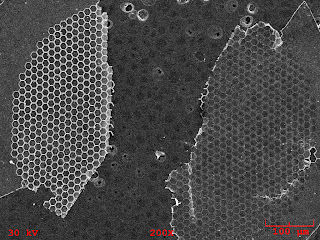

This is an image if the blown EDS window. The right portion shows the exterior surface (towards the chamber) and the left portion shows the interior surface (towards the detector). The interior surface shows clearly the bright hexagnoal silicon grid for supporting the actual window.
